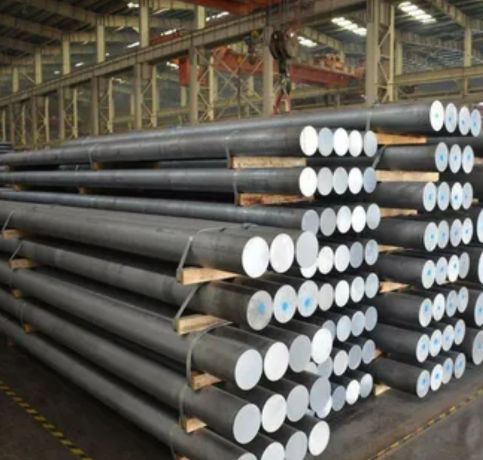

Nestled in the industrial heart of Amman, Jordan, Sabra Metals has built a strong reputation for providing exceptional metal solutions, with a particular focus on specialized alloys. We take pride in offering a reliable and high-quality Alloy 20 round bar, a material chosen by engineers for its remarkable ability to stand up to some of the most challenging industrial environments. It’s a product that reflects our commitment to supplying the robust materials our clients need to build durable and efficient projects.
The strength of our Alloy 20 round bar comes from its carefully balanced composition, which includes nickel, chromium, and copper, with a key addition of columbium for stability. This specific recipe gives the bar outstanding resistance to corrosive substances like sulfuric acid and chlorides. Mechanically, it is a tough and ductile material, offering excellent tensile strength and good impact values, which makes it not only resilient but also highly workable for intricate machining and fabrication tasks.
Alloy 20 Round Bar Specification : ASTM B473 , ASME SB473
Dimension Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Size : 14mm-300mm
Thickness : 50 mm to 6000 mm Long
Length : 1 To 6 Meters, Custom Cut Length

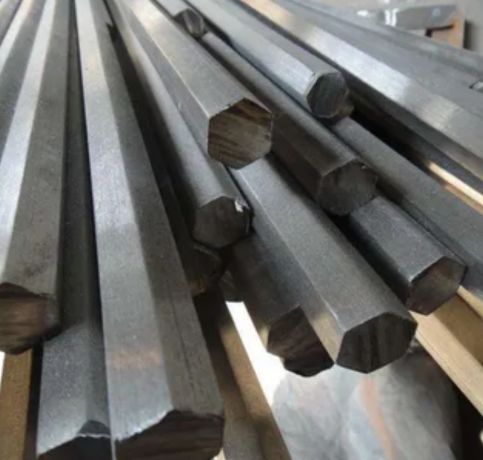

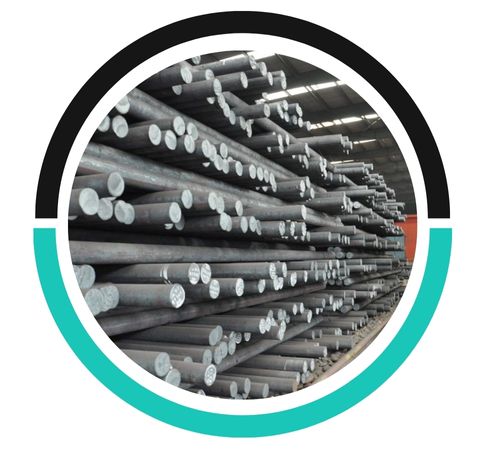

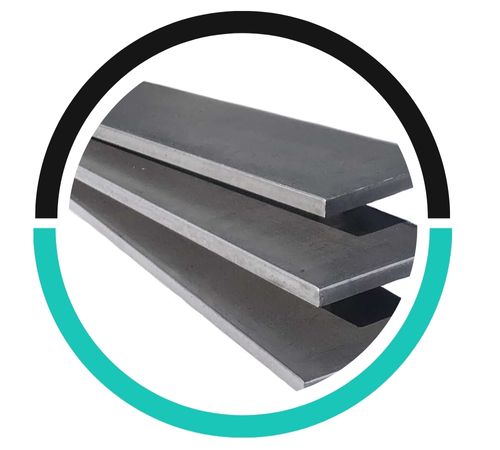

Form : Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc.
| Grade | C | Mn | Si | S | Cu | Ni | Cr | Fe | Mo | P |
|---|---|---|---|---|---|---|---|---|---|---|
| Alloy 20 | 0.07 max | 2.00 max | 1.00 max | 0.035 max | 3.00 – 4.00 | 32.00 – 38.00 | 19.00 – 21.00 | 29.85 min* | 2.00 – 3.00 | 0.045 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Alloy 20 | 8.1 g/cm3 | 1443 °C (2430 °F) | Psi -80,000, MPa -551 | Psi – 35,000, MPa – 241 | 30 % |
| STANDARD | UNS | WNR. | EN | AFNOR |
|---|---|---|---|---|
| Alloy 20 | N08020 | 2.4660 | NiCr20CuMo | Z2NCUD31-20AZ |
Type | SIZES (mm) | ISO Tolerance | SIZES (Inches) |
|---|---|---|---|
Peeled and Polished | 40.00 to 150.00 | h11-DIN 1013 | 1.50″ to 6.00″ |
Cold Drawn and Ground | 10.00 to 75.00 | h9-h8-h11-h10 | 5/6″ to 2.50″ |
Cold Drawn and Polish | 3.00 to 75.00 | h9-h8-h11-h10 | 1/8″ to 3.00″ |
Peeled and Ground | 20.00 to 50.00 | h10-h9-h11 | 3/4″ to 2.00″ |
Cut to size on request (tolerance +2/-0 mm). Standard lengths of Alloy 20 Bars 2000 mm up to 6000 mm available
50.0 | 6.0 |
65.0 | 9.0 |
55.0 | 7.0 |
45.0 | 5.0 |
70.0 | 10.0 |
60.0 | 8.0 |
75.0 | 12.0 |
90.0 | 20.0 |
80.0 | 16.0 |
130.0 | 30.0 |
100.0 | 25.0 |
160.0 | 35.0 |
120.0 | 40.0 |
Choose the right Alloy 20 Round Bar based on factors like corrosion resistance, strength requirements, and compatibility with your specific application environment.
The pressure rating of Alloy 20 Round Bar depends on factors such as size, temperature, and specific application conditions, typically determined through engineering calculations.
Yes, Alloy 20 Round Bar can be welded, offering excellent weldability with proper techniques.
This unique combination of properties makes the Alloy 20 round bar an indispensable component across several key sectors. You’ll find it at the core of chemical processing equipment, in components for pharmaceutical manufacturing, and within plastic production facilities. Its reliability is also crucial for fabricating fasteners, valves, and pump shafts, especially in environments dealing with aggressive acids. Essentially, wherever corrosion is a primary concern, this alloy provides the long-lasting performance needed for critical applications, ensuring systems operate safely and efficiently for years to come.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
