Nestled in the industrial heart of Amman, Jordan, Sabra Metals has built a reputation for precision and reliability in the metals sector. We take pride in supplying high-quality materials that form the backbone of countless projects across the region and beyond. Our Aluminium 5005 Bar/Rods exemplify this commitment, offering a versatile and dependable solution for engineers and fabricators who require a metal that balances excellent workability with commendable strength, all delivered with the dependable service our clients have come to expect.
The Aluminium 5005 alloy is primarily composed of magnesium, which gives it its strengthened characteristics, while maintaining over 99% aluminium content for excellent corrosion resistance. This combination results in a metal that is moderately strong, highly malleable, and perfect for forming operations. It can be easily welded and anodized to a beautiful, durable finish, making it not only a practical choice but also an aesthetically pleasing one for applications where appearance matters.
| Aluminium Alloy | ASTM B211, B211, B565, B316 5082, AMS 4121 |
| Standard | ASTM, ASME, AMS, GB/T, JIS |
| Aluminium Round Bar Temper | O, H12, H14, H16, H18, H22, H24, H26, H32, H112 |

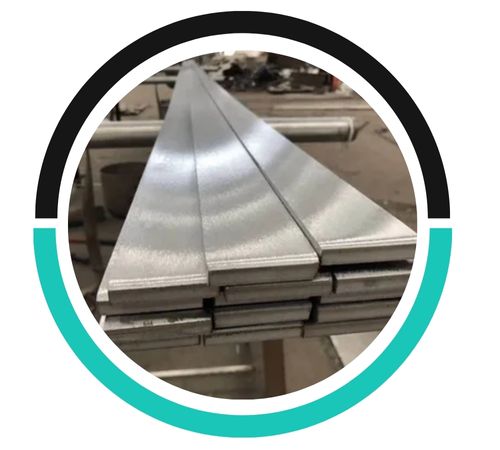

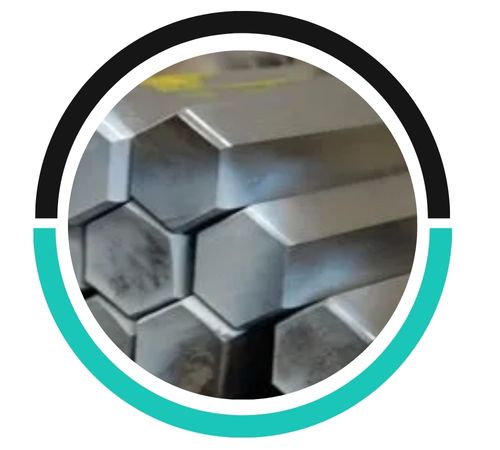

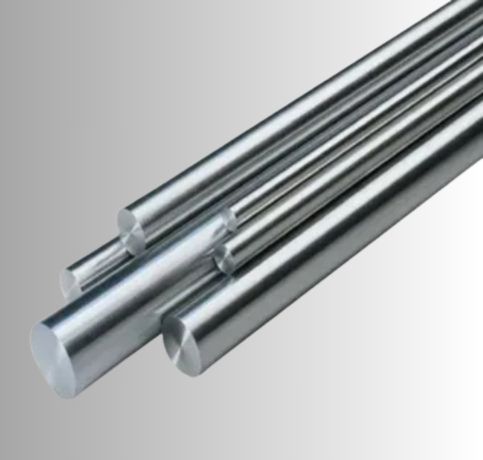

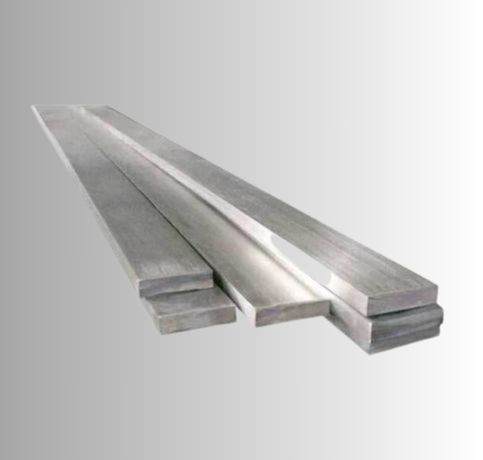

| Aluminium Bar Form | Aluminium Round, Hex, Flat, Half Round, Oval, Rectangular in Black & Bright Finish |
| Aluminium Round Bar Diameter | 0.1-600mm,etc |
| Aluminium Hexagonal Bar | 0.1-600mm,etc |
| Aluminium Angle Bar Size | 0.5mm*40mm*40mm-20mm*400mm*400mm |
| Aluminium Flat Bar Thickness | 0.1-600mm,etc |
| Aluminium Flat Bar Size | 1-2500mm, etc |
| Aluminium Round Bar Length | 1-12m, Random, Fix & Cut Length or as per clients’ requirement |

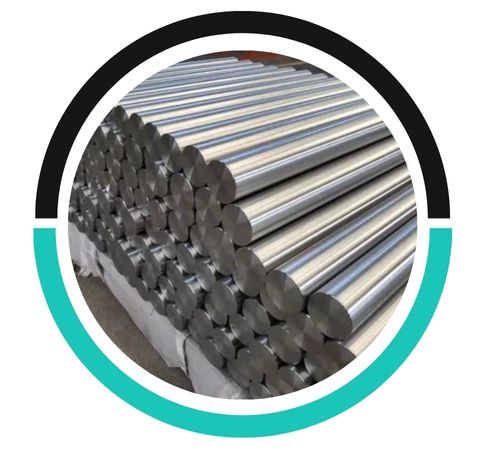

| Aluminium Bar | Bright, Polish & Black |
| Weight% | Al | Si | Fe | Cu | Mn | Cr | Mg | Zn | Others Each | Others Total |
| 5005 | Bal | 0.30 max | 0.70 max | 0.20 max | 0.20 max | 0.10 max | 0.50 / 1.10 | 0.25 max | 0.05 max | 0.15 max |
| Material | Temper | Tensile Strength (N/mm²) | Yield Strength (N/mm²) | Elongation on 50mm (%) | |||
| 0.5 mm | 0.8 mm | 1.3 mm | 2.6mm | ||||
| 5005 | 0 | 95-145 | – | 18 | 20 | 21 | 22 |
| 5005 | H12 | 125-170 | 80 | 4 | 5 | 6 | 8 |
| 5005 | H14 | 145-185 | 100 | 3 | 3 | 5 | 6 |
| 5005 | H18 | 185 min | 165 | 1 | 2 | 3 | 3 |
| European Standard | GERMANY | UNS | WERKSTOFF NR. |
| B57S | Al-Mg-1 | A95005 | – |
| Size in mm | Average Weight | |
| KG/MTR | KG/FT | |
| 10 | 0.62 | 0.18 |
| 12 | 0.90 | 0.30 |
| 14 | 1.20 | 0.40 |
| 16 | 1.60 | 0.50 |
| 18 | 2.00 | 0.60 |
| 20 | 2.50 | 0.80 |
| 22 | 3.00 | 0.90 |
| 24 | 3.56 | 1.08 |
| 25 | 3.90 | 1.20 |
| 28 | 4.80 | 1.50 |
| 30 | 5.55 | 1.69 |
| 32 | 6.30 | 1.90 |
| 34 | 7.14 | 2.18 |
| 36 | 8.00 | 2.44 |
| 40 | 9.90 | 3.00 |
| 45 | 12.49 | 3.81 |
| 50 | 15.40 | 4.70 |
| 56 | 19.34 | 5.89 |
| 60 | 22.20 | 6.80 |
| 63 | 24.47 | 7.46 |
| 63.5 | 24.86 | 7.58 |
| 65 | 26.05 | 7.94 |
| 70 | 30.20 | 9.20 |
| 73 | 32.86 | 10.00 |
| 75 | 34.72 | 10.58 |
| 78 | 37.51 | 11.43 |
| 80 | 39.50 | 12.00 |
| 83 | 42.47 | 12.95 |
| 85 | 44.55 | 13.58 |
| 90 | 50.00 | 15.20 |
| 92 | 52.19 | 15.91 |
| 93 | 53.39 | 16.27 |
| 95 | 55.65 | 16.95 |
| 100 | 61.66 | 18.79 |
| 105 | 67.98 | 20.72 |
| 110 | 74.60 | 22.74 |
| 115 | 81.64 | 24.88 |
| 125 | 96.34 | 29.36 |
Yes, Aluminium 5005 bars can be welded. It has excellent weldability, especially using TIG (Tungsten Inert Gas) and MIG (Metal Inert Gas) welding processes. Proper cleaning of the surface before welding is essential to prevent contamination and ensure strong welds.
Considerations for installing Aluminium 5005 bars and rods include ensuring proper welding techniques, avoiding galvanic corrosion, considering expansion and contraction due to temperature changes, and ensuring correct surface preparation for durability.
Aluminium 5005 has good corrosion resistance, particularly in atmospheric and marine environments, due to its high magnesium content. However, like all aluminium alloys, it can corrode under certain conditions, such as in highly acidic or alkaline environments. To prevent corrosion, surface treatments like anodizing or applying protective coatings are often used, especially in aggressive environments.
Because of its versatile nature, Aluminium 5005 Bar/Rods are a go-to material for a wide array of uses. You’ll often find them expertly crafted into architectural trims, sturdy marine components, and stylish furniture frames. They are equally at home in the fabrication of kitchen equipment, general hardware, and various automotive parts. This adaptability makes our 5005 bars an invaluable resource for industries ranging from construction and manufacturing to design, proving that a great material can seamlessly fit into many different visions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
