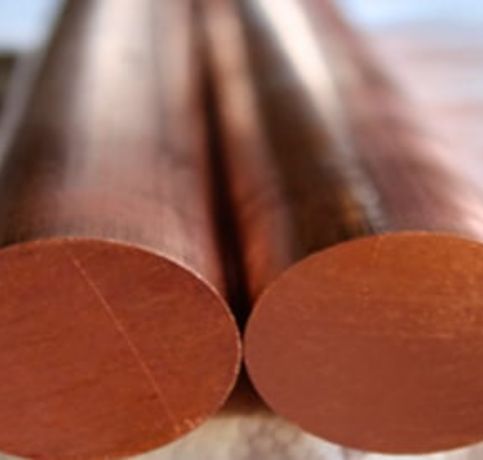

Operating from the industrial heart of Amman, Sabra Metals has built a strong reputation for quality and reliability in the supply of essential materials. We are proud to offer premium Copper C11500 bars and rods, providing Jordanian industries and international partners with a trusted source for this fundamental, high-conductivity metal. Our commitment ensures you receive materials that meet stringent specifications, supporting projects where performance and dependability are non-negotiable.
Copper C11500 is distinguished by its exceptional purity, consisting of at least 99.95% copper with only trace amounts of other elements. This specific composition is the key to its outstanding electrical and thermal conductivity, ranking among the highest of any industrial metal. It is naturally resistant to corrosion and offers excellent formability, making it a versatile choice for engineers and fabricators who require a material that is both highly functional and easy to work with.
| Specification | ASTM B187, ASTM B301 / ASME SB187, SB301 |
| Size Range | 3.17 MM TO 350 MM DIA |
| Length | Random, Fix & Cut Length |

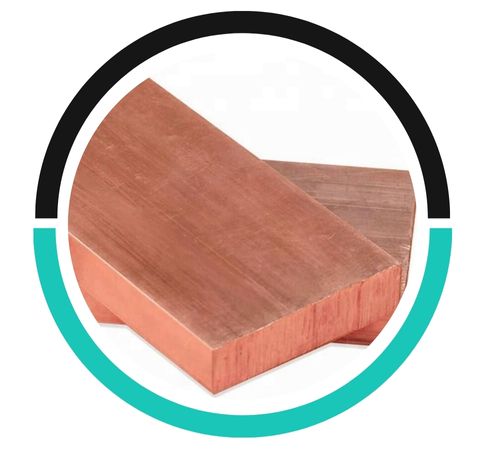

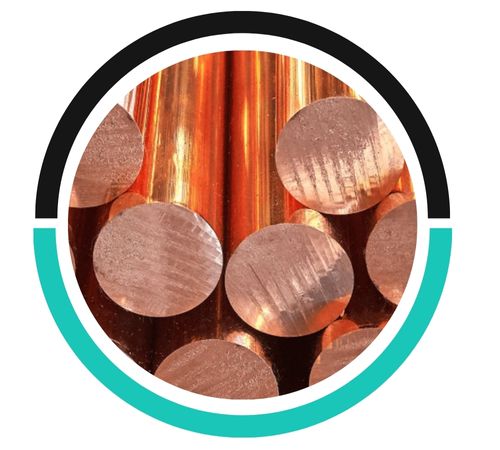

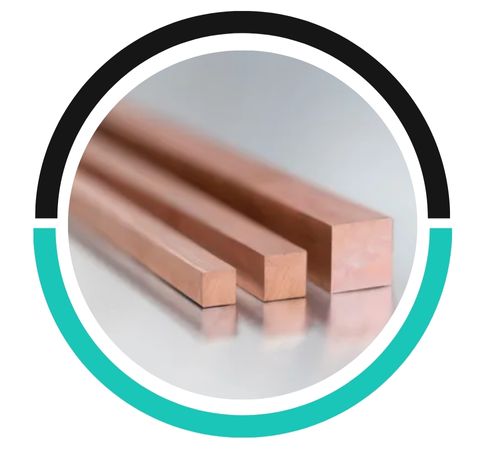

| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc. |
| Elements | ||
|---|---|---|
| Cu(1,2,3) | Ag(4) | |
| (1) Oxygen and trace elements may vary depending on the process. (2) This is a high conductivity copper which has, in the annealed condition a minimum conductivity of 100% IACS. (3) Cu value includes Ag. (4) Ag 0.054% min is the equivelant of, Ag 16 Troy Oz min. | ||
| Min (%) | 99.90 | 0.054 |
| Max (%) | – | – |
| Form | Temper | Temper Code | Tensile Strength (ksi) | YS-0.5% Ext (ksi) | Elongation (%) | Rockwell B scale | Rockwell F scale | Rockwell 30T scale | Shear Strength (ksi) | Section Size (in) | Cold Work (%) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| * Measured at room temperature, 68°F (20°C). | |||||||||||
| Rod | As Hot Rolled | M20 | 32 Typ | 10 Typ | 55 Typ | 40 Typ | 22 Typ | 1 | |||
| Hard | H04 | 55 Typ | 50 Typ | 10 Typ | 60 Typ | 94 Typ | 29 Typ | 0.25 | 40 | ||
| Hard | H04 | 45 Typ | 40 Typ | 20 Typ | 45 Typ | 85 Typ | 26 Typ | 2 | 16 | ||
| Hard | H04 | 48 Typ | 44 Typ | 16 Typ | 47 Typ | 87 Typ | 27 Typ | 1 | 35 | ||
| Nominal Grain Size 0.050 mm | OS050 | 32 Typ | 10 Typ | 55 Typ | 40 Typ | 22 Typ | 1 | ||||
Yes, Copper C11500 Bars and Rods can be susceptible to galvanic corrosion when in contact with dissimilar metals, especially in the presence of an electrolyte. Proper insulation or coatings can prevent this.
Yes, Copper C11500 Bars and Rods are suitable for hygienic and sanitary applications due to their natural antimicrobial properties. However, regular maintenance and cleaning are essential to maintain hygiene standards.
Copper C11500 Bars and Rods can be used for natural gas applications, offering excellent corrosion resistance and conductivity. However, they may require additional protective coatings in specific environments to prevent corrosion.
The uses for C11500 bars and rods are extensive, forming the backbone of many critical electrical systems. You will commonly find this material expertly machined into bus bars, electrical connectors, and waveguides, where efficient energy transmission is the top priority. Beyond electronics, its excellent thermal properties make it ideal for heat exchanger components in industrial equipment. Its natural resistance to corrosion also lends itself to architectural applications, plumbing fixtures, and various components where long-term durability in challenging environments is essential.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Sabra Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Amman, Jordan
