From the heart of Amman, Jordan, Sabra Metals has built a reputation as a trusted source for high-performance materials. We take particular pride in our Copper Nickel 955 bars and rods, a product line that embodies our commitment to quality and durability. This specialized alloy is engineered for those challenging environments where failure is not an option, making it an essential component for critical projects across various demanding industries.
The strength of our Copper Nickel 955 lies in its precise composition, primarily a blend of copper with a significant nickel content and carefully balanced additions of iron and manganese. This specific recipe gives the material its outstanding mechanical properties, including excellent tensile strength and remarkable resistance to corrosion. It is specifically designed to hold its own against the aggressive nature of seawater, making it a reliable choice for long-term applications.
| Standards | ASTM B151 / ASME SB151 |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI all International Standards |

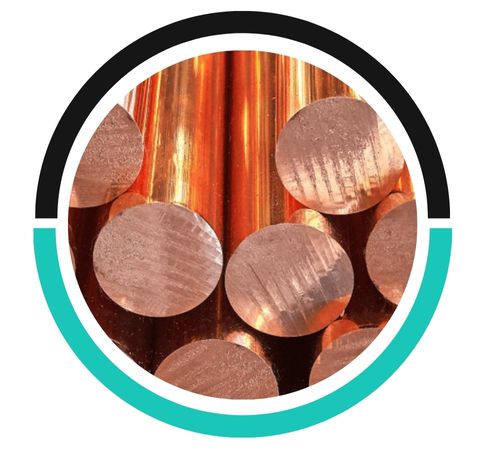

| Diameter | Outside Diameter in the range of 4mm to 500mm |
| Width | 1m to 48″ |

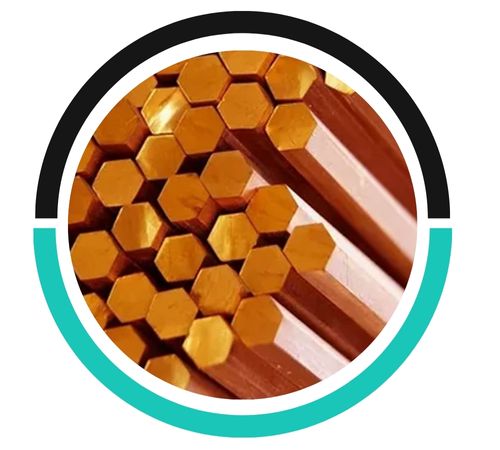

| Hex Bars | 18mm – 57mm (11/16″ to 2-3/4″) |

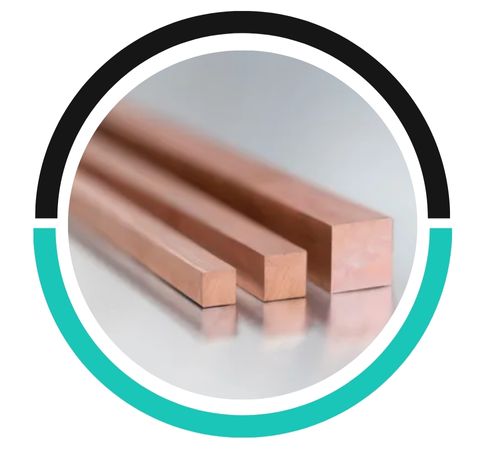

| Square Bars | 18mm – 47mm (11/16″ to 1-3/4″) |

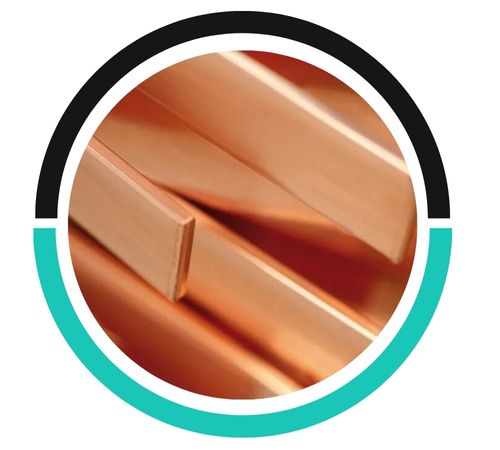

| Flat Bars | 1/2” to 10” in the thickness range of 2mm to 150mm |
| Wire Length | Max 12000 mm |
| Wire Diameter | 5.5 – 400 mm |
| Length | 1 to 6 Meters, Custom Cut Lengths |
| Types | Round, Square, Hex (A/F), Flat, Square, Rectangle, Billet, Ingot, Forging, Wire Bobbin, Wire Spool, Wire Rope, Spring Wires, Welding Wire, Coiled Wire Etc. |
| STANDARD | UNS | WERKSTOFF NR. |
| Cu-Ni 95/5 | C70400 | – |
Melting Point – Liquidus°F |
2050 |
Densitylb/cu in. at 68°F |
0.323 |
Specific Gravity |
8.94 |
Electrical Conductivity% IACS at 68°F |
14 |
Thermal ConductivityBtu/ sq ft/ ft hr/ °F at 68°F |
37 |
Coefficient of Thermal Expansion 68-57210?6 per °F (68 – 572°F) |
9.7 |
Specific Heat CapacityBtu/ lb /°F at 68°F |
0.09 |
Modulus of Elasticity in Tensionksi |
17000 |
Modulus of Rigidityksi |
6400 |
Yes, Copper-nickel 95/5 bars and rods are suitable for hygienic and sanitary applications due to their antimicrobial properties, corrosion resistance, and non-toxic nature, making them ideal for water and food-related systems.
Yes, Copper-nickel 95/5 bars and rods can be recycled after use. Their high recyclability allows them to be reprocessed without significant loss of properties, promoting sustainability and resource efficiency.
Yes, Copper-nickel 95/5 bars and rods are suitable for potable water applications due to their excellent corrosion resistance, biofouling resistance, and durability, ensuring safe and long-lasting performance in water systems.
This resilience makes these bars and rods indispensable in marine engineering, where they are commonly used for fabricating pump shafts, propeller shafts, and fasteners for ships and offshore platforms. Their reliability also extends to the power generation sector, particularly within desalination plants and condensers that handle brackish or saltwater. Essentially, wherever components face constant exposure to corrosive seawater, our CuNi 955 products provide a proven, long-lasting solution.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Sabra Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Amman, Jordan
