Located in the heart of Amman, Jordan, Sabra Metals has built a strong reputation as a trusted manufacturer and supplier of high-performance alloys, with a particular expertise in Hastelloy C22. We are dedicated to providing industrial sectors across the region and beyond with materials that stand up to the most demanding conditions. Our commitment to quality ensures that every bar and rod we supply offers exceptional reliability, making us a key partner for projects where failure is not an option and corrosion resistance is paramount.
Hastelloy C22 is renowned for its outstanding versatility, thanks to a carefully balanced composition that includes significant amounts of nickel, chromium, and molybdenum, with a touch of tungsten. This unique blend gives the material its remarkable strength, excellent ductility, and superior resistance to fatigue. These mechanical properties allow it to maintain structural integrity under high stress and across a wide range of temperatures, making it a robust choice for components that must perform reliably in challenging environments for extended periods.
| Standard | ASTM B574, ASME SB574 |

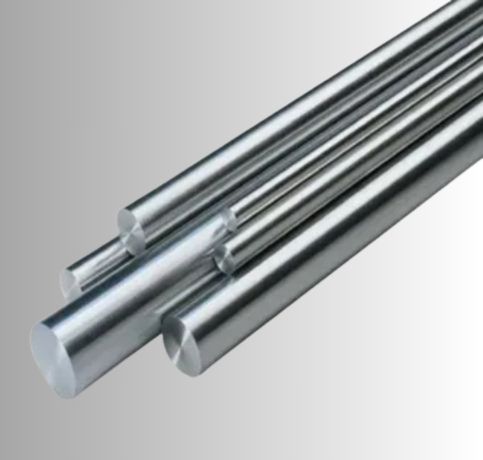

| Round Bar Size | 3mm~ 800mm |

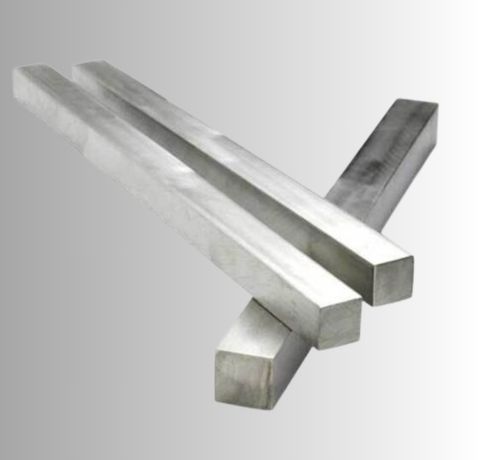

| Square Bar Size | 4mm* 4mm ~100mm* 100mm |

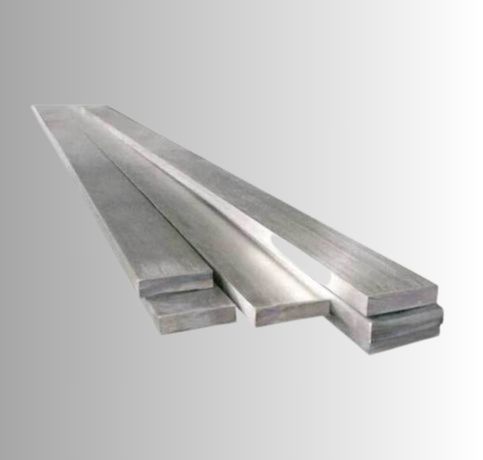

| Flat Bar Size | 2mm ~ 100mm |
| Hex Bar Size | 2mm ~ 100mm |
| Angle Size | 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm |
| Thickness | 50 mm to 6000 mm Long |
| Length | 1 To 6 Meters, Custom Cut Length |
| Form | Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc |
| Grade | Ni | C | Cr | Co | Fe | Mn | Mo | P | Si | S | W | V |
| Hastelloy C22 | Bal | 0.010 max | 20 – 22.5 | 2.5 max | 2 – 6 | 0.50 max | 12.5 – 14.5 | 0.02 max | 0.08 max | 0.02 max | 2.5 – 3.5 | 0.35 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
| STANDARD | WERKSTOFF NR. | UNS | GOST | AFNOR | JIS | OR | EN |
| Hastelloy C22 | 2.4602 | N06022 | – | – | NW 6022 | – | NiCr21Mo14W |
| ALLOY C-22 (Ni/22Cr/13Mo/3Fe/3W) / INCONEL 622/C-22 Round Bar | Dimension |
|---|---|
| cold drawn, solution annealed | Dia=16.0 mm, Weight=1.75 kg/m |
| hot worked, solution annealed, peeled | Dia=20.0 mm, Weight=2.6 kg/m |
| hot worked, solution annealed, peeled | Dia=25.4 mm, Weight=4.5 kg/m |
| hot worked, solution annealed, peeled | Dia=30.0 mm, Weight=6.14 kg/m |
| hot worked, sol annealed, peeled | Dia=38.1 mm, Weight=10.1 kg/m |
| extruded, machined, solution annealed | Dia=45.0 mm, Weight=13.15 kg/m |
| hot worked, solution annealed, peeled | Dia=50.8 mm, Weight=18.0 kg/m |
| extruded, machined, solution annealed | Dia=70.0 mm, Weight=35.0 kg/m |
| solution annealed, peeled | Dia=82.55 mm, Weight=47.6 kg/m |
| hot worked, solution annealed, peeled | Dia=101.6 mm, Weight=72.1 kg/m |
| forged, solution annealed, peeled | Dia=115.0 mm, Weight=89.4 kg/m |
| forged, solution annealed, peeled | Dia=130.0 mm, Weight=113.9 kg/m |
| forged, solution annealed, peeled | Dia=150.0 mm, Weight=152.15 kg/m |
| forged, turned | Dia=165.1 mm, Weight=187 kg/m |
Yes, Hastelloy C22 Bars are highly corrosion-resistant, particularly against pitting, crevice corrosion, and stress corrosion cracking in harsh environments. They excel in resisting acids, oxidizing agents, and chloride-induced corrosion.
Yes, Hastelloy C22 rods can be customized in size and length to meet specific industrial requirements. Manufacturers often offer tailored dimensions to suit diverse applications.
Hastelloy C22 bars perform exceptionally well in high-temperature environments due to their superior resistance to oxidation and thermal stability. They maintain strength and corrosion resistance under extreme conditions.
The real strength of Hastelloy C22 bars and rods shines in their wide-ranging applications. They are indispensable in chemical processing equipment, pollution control systems, and industrial furnaces where resistance to harsh acids like sulfuric and hydrochloric is critical. You’ll also find them in pivotal roles within the pharmaceutical industry, marine engineering, and flue gas desulfurization units. Essentially, wherever severe corrosion and heat are a threat to standard materials, Hastelloy C22 provides a durable, long-lasting solution that minimizes downtime and maintenance costs.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
