Located in the heart of Amman, Jordan, Sabra Metals has built a strong reputation as a trusted manufacturer and supplier of high-performance components. We specialize in producing superior Hastelloy forgings, where our skilled craftsmanship meets advanced metallurgical expertise. Our focus is on delivering forgings that not only meet but exceed the rigorous demands of critical industries. We understand that reliability is paramount, and our commitment to quality ensures that our clients receive components built for resilience and long-term performance in the most challenging environments.
Our Hastelloy forgings are defined by their unique nickel-chromium-molybdenum composition, which grants them an exceptional resistance to a wide range of corrosive chemicals. This alloy is engineered to maintain its structural integrity under extreme stress and high temperatures, offering outstanding tensile strength and impressive creep resistance. The forging process itself enhances these qualities, creating a dense, uniform microstructure that provides superior toughness and durability compared to other manufacturing methods, ensuring a part that is built to withstand immense pressure and wear.
Specifications ASTM B564 / ASME SB564
Flat bar blocks up to 27″ width and 15,000 lbs.
Cylinders and sleeves up to 50″ maximum O.D. and 65″ maximum length
Discs and hubs up to 50″ diameter and 20,000 lbs.
Rolled, hand forged or mandrel forged rings up to 84″ maximum O.D. and 40″ maximum length
Rounds, shafts and step shafts up to 144″ maximum length and 20,000 lbs.
Grades Hastelloy C22, Hastelloy C276
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
| C 276 | 0.010 max | 1.00 max | 0.08 max | 0.03 max | 2.50 max | 50.99 min* | 14.50 – 16.50 | 4.00 – 7.00 | 15.00 – 17.00 | 0.04 max |
| C 22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | 2.50 max | 50.015 min* | 20.00 – 22.50 | 2.00 – 6.00 | 12.50 – 14.50 | 0.02 max |
| B2 | 0.02 max | 1.0 max | 0.1 max | 0.03 max | 1.0 max | Bal | 1.0 max | 2.0 max | 26 – 30 | 0.04 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Alloy C276 | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40 % |
| Alloy C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
| Alloy B2 | 9.2 g/cm3 | 1370 °C (2500 ºF ) | Psi – 1,10,000 , MPa – 760 | Psi – 51000 , MPa – 350 | 40 % |
To improve the surface finish of Hastelloy forgings, use techniques like polishing, grinding, or shot peening. Additionally, chemical or electrochemical cleaning can remove surface contaminants and enhance smoothness.

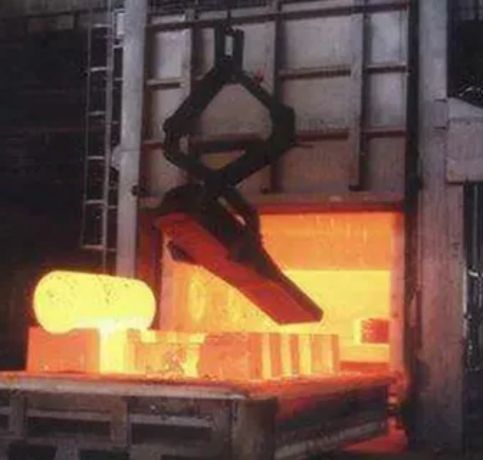

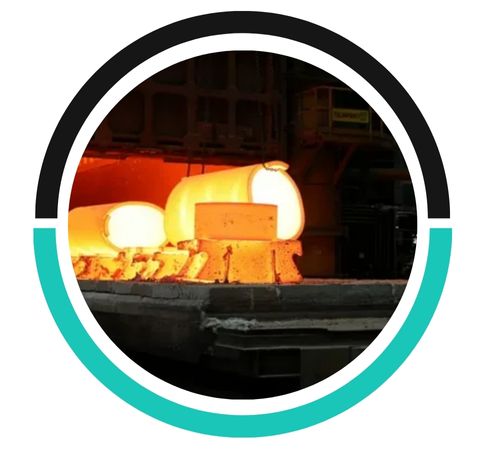

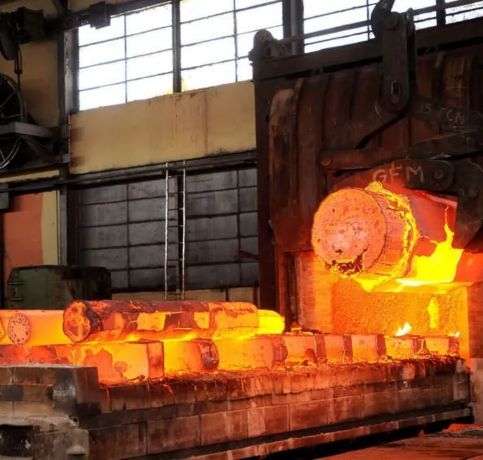

The most suitable forging techniques for Hastelloy include open-die forging and closed-die forging, which ensure optimal material flow and minimize defects. These methods provide the necessary strength and precision for high-performance applications.
To determine if Hastelloy forgings meet your needs, evaluate their chemical composition, mechanical properties, and corrosion resistance in your specific operating conditions. Conduct material testing or consult with suppliers for tailored solutions based on your application requirements.
The exceptional properties of our Hastelloy forgings make them indispensable across a spectrum of demanding applications. They are commonly found deep within chemical processing plants, handling aggressive acids, and in oil and gas installations, resisting sour gas corrosion. You’ll also find them in pollution control scrubbers, pharmaceutical reactors, and marine environments where failure is not an option. Essentially, wherever conditions are exceptionally harsh, our forgings provide the reliable, long-lasting performance that keeps critical operations running safely and efficiently.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
