Sabra Metals, based in the industrious heart of Amman, Jordan, has built a trusted reputation as a dedicated manufacturer and supplier of high-performance alloys. We understand the critical demands of modern industry, which is why we take pride in producing and stocking premium Monel 400 bars and rods. Our commitment lies in providing robust materials engineered for resilience, ensuring our clients receive components that stand up to the most challenging operational environments with unwavering strength and reliability, right from the core of the Middle East.
Monel 400 is a nickel-copper alloy known for its exceptional performance. Its composition is primarily about 67% nickel and 23% copper, which gives it outstanding corrosion resistance in a wide range of conditions. This alloy is not just about chemical fortitude; it also possesses impressive mechanical strength, good ductility, and can maintain its integrity across a wide temperature spectrum, from sub-zero chill to high heat, making it a remarkably versatile material for demanding engineering projects.
| Standard | ASTM B164, ASME SB164 |

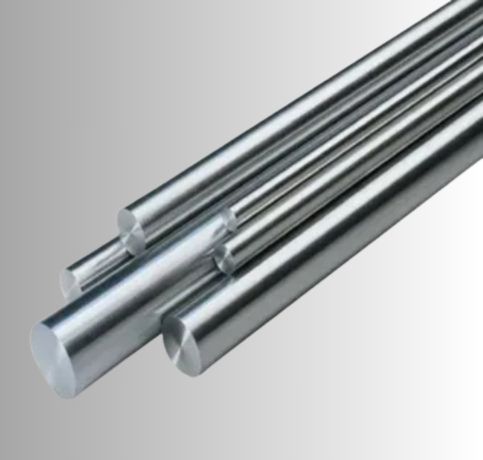

| Round Bar Size | 3mm~ 800mm |

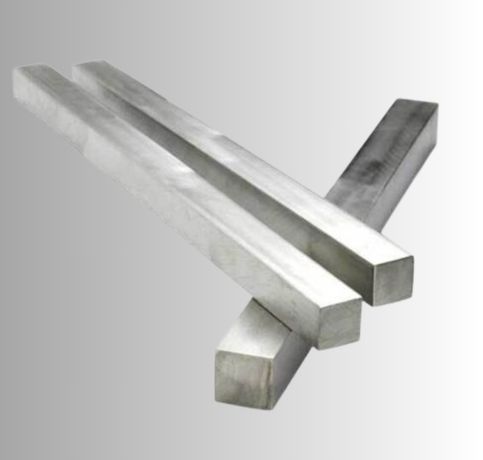

| Square Bar Size | 4mm* 4mm ~100mm* 100mm |

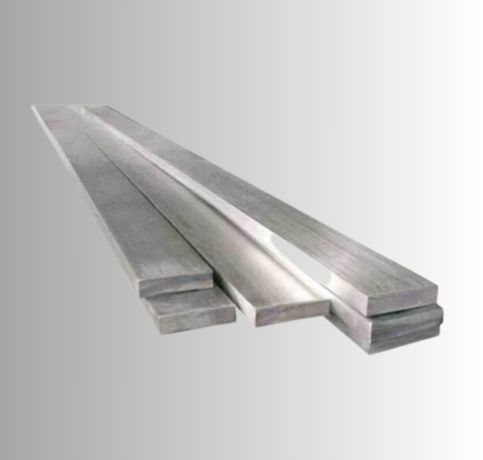

| Flat Bar Size | 2mm ~ 100mm |
| Hex Bar Size | 2mm ~ 100mm |
| Angle Size | 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm |
| Thickness | 50 mm to 6000 mm Long |
| Length | 1 To 6 Meters, Custom Cut Length |
| Form | Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc |
| Grade | Ni | Fe | C | Mn | Si | Cu | Al | S |
| Monel 400 | 63.0 min | 1.0 – 2.5 | 0.3 max | 2.0 max | 0.5 max | 28.0 – 34.0 | 0.50 max | 0.02 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 35000 , MPa – 240 | 40 % |
| STANDARD | WERKSTOFF NR. | UNS | GOST | AFNOR | JIS | BS | EN |
| Monel 400 | 2.4360 | N04400 | МНЖМц 28-2,5-1,5 | NU-30M | NW 4400 | NA 13 | NiCu30Fe |
Yes, Monel Alloy 400 Bars are highly corrosion-resistant, especially in seawater and acidic environments. Their excellent resistance to pitting, crevice corrosion, and stress corrosion cracking makes them ideal for harsh conditions.
Yes, Monel 400 rods can be customized in size and length according to specific requirements. They are available in various diameters and lengths to suit different industrial applications.
Monel Alloy 400 Bars and Rods perform well in high-temperature environments, maintaining strength and resistance to oxidation. They can withstand temperatures up to 1,000°F (538°C) without significant degradation.
The real-world applications for Monel 400 bars and rods are a testament to their durability. You’ll find them as the backbone of marine engineering, used for pump shafts and fasteners that resist saltwater corrosion. They are essential in chemical processing plants for components like valve stems and mixer shafts, where resistance to acidic environments is paramount. Beyond that, these robust bars are also crucial in oil and gas extraction, freshwater heat exchangers, and even in specialized aerospace components, proving their worth wherever failure is not an option.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Sabra Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Amman, Jordan
