In the heart of Amman, Jordan, Sabra Metals has built a reputation for excellence in the specialized world of advanced alloys. We take particular pride in our Nilo Alloys bar and rod offerings, materials engineered for unique challenges. These aren’t your everyday metals; they are precision-formulated solutions for applications where predictable thermal behavior is absolutely critical, serving industries that demand unwavering reliability and performance from their core components.
The Nilo family, including types 36, 42, and 48, are nickel-iron alloys distinguished by their carefully controlled low thermal expansion characteristics. Their composition allows them to maintain remarkable dimensional stability across a wide range of temperatures. This unique property is complemented by good machinability and strength, making them exceptionally reliable in environments subject to significant heat fluctuations where other materials would expand or contract.
| Grade | Nilo Alloy Round Bar |
|---|---|
| Nilo Alloy Square bar size | 4 to 100mm |
| Nilo Alloy Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |

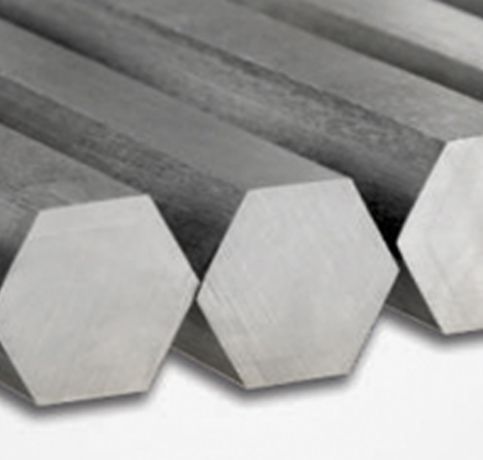

| Alloy Nilo Hex Bar size | 2-100mm A/F |
| Nilo Alloy Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Nilo Alloy Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Alloy Nilo Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Nilo Alloy Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Nilo Alloy Section | 3.0 to 12.0mm thickness |
| Alloy Nilo Round bar size | Diameter: 3-~800mm |
| Nilo Alloy Billet Size | 1/2″ to 495mm Diameter |
| Nilo Alloy Round Bar Standard Dimensions | Diameter / Height: |
| Nilo Alloy Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Nilo Alloy Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Alloy Nilo Technique | Nilo Alloy Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Nilo Alloy Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |

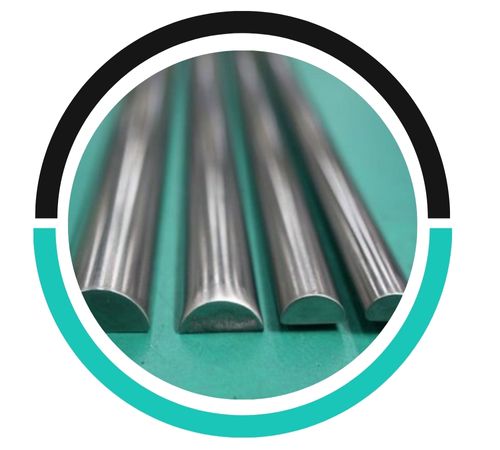

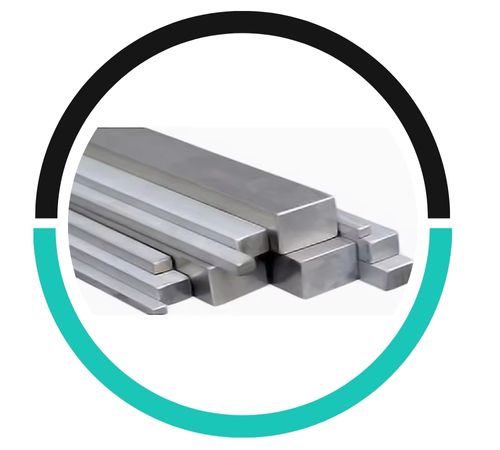

| Form | Nilo Alloy Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square Bar, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Nilo Alloy Round bar conforms to NACE MR0175/ISO 15156 | |
| Grade | Mn | C | P | S | Si | Ni | Cr | Fe |
| Nilo Alloy 48 | 0.80 max | 0.05 max | 0.025 max | 0.025 max | 0.030 max | 48 | 0.250 max | Bal |
| Nilo Alloy K | 0.50 max | 0.04 max | 17.0 | 0.10 max | 0.20 | 29.0 | 0.20 max | 53.0 |
Properties | Metric | Imperial |
|---|---|---|
Modulus of elasticity | 130 GPa | 18900 ksi |
Tensile strength | 520MPa | 75.4 ksi |
Yield strength | 340 MPa | 49.3 ksi |
Nilo alloy bars and rods excel in high-temperature environments due to their excellent thermal stability, low thermal expansion, and resistance to thermal shock, making them ideal for high-precision applications.
Yes, Nilo Alloy rods can be customized in size and length to meet specific requirements. Manufacturers typically offer tailored solutions based on customer needs for various applications.
To maintain Nilo Alloy bars, clean regularly with a mild detergent, avoid harsh chemicals, store in a dry environment, and inspect for wear or corrosion. Lubricate if necessary.
This exceptional thermal stability makes Nilo Alloys indispensable in many precision fields. You’ll find them in components for telecommunications and electronics, such as glass-to-metal seals in vacuum tubes and laser housings. They are also crucial in precision measuring devices like pendulums and gauges, where even microscopic size changes would cause inaccuracies. From scientific instruments to critical aerospace components, these bars and rods provide the steadfast foundation that advanced technology relies on.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Sabra Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Amman, Jordan
