Sabra Metals is a reputable manufacturer and supplier located in Amman, Jordan, focusing on top-notch stainless steel products tailored for a variety of industrial uses. One of our standout offerings is the Stainless Steel 347 Flat Bar, crafted with precision and rigorous quality checks to align with international standards. Renowned for its reliability and durability, this flat bar is built to excel in tough environments. Sabra Metals caters to the construction, petrochemical, power, and fabrication sectors by providing stainless steel solutions that guarantee strength, resistance to corrosion, and a long lifespan.
The Stainless Steel 347 Flat Bar is an austenitic stainless steel alloy that’s stabilized with niobium to reduce carbide precipitation when exposed to high temperatures. Its chemical makeup features chromium and nickel, which contribute to its excellent corrosion resistance, while niobium enhances its thermal stability. On the mechanical side, it boasts good tensile and yield strength, impressive toughness, and outstanding creep resistance. This material retains its mechanical properties even at elevated temperatures, offers good weldability, and stands up to intergranular corrosion in harsh operating conditions.
Standard Specification : ASTM A276, ASTM A479, ASTM A182
Specification : EN, DIN, JIS, ASTM, BS, ASME, AISI

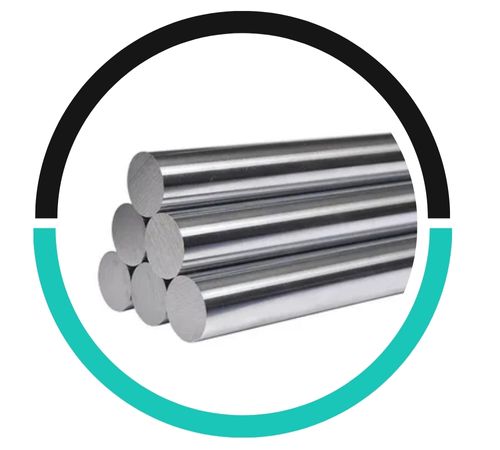

SS 310 Round Bars : Outside Diameter in the range of 4mm to 500mm
SS 310 Hex Bars : 4mm – 101.6mm
SS 310 Flat Bars : 1 / 2” to 10” in thickness range of 1.6mm to 150mm, Custom Size Stainless Steel Flats available

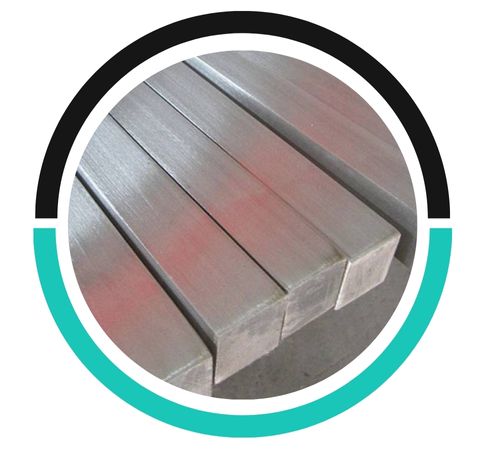

SS 310 Square Bars : 3mm – 100mm
SS 310 Bright Bars : Outside Diameter in the range of 4mm to 200mm
Outer diameter– 4mm to 500mm
Form : Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc.
Length : 1 to 6 Meters, Custom Cut Lengths
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Our SS 310 Round bars conforms to NACE MR0175/ISO 15156
| Cr | Ni | C | Si | Mn | P | S | Mo | Cu | Fe |
|---|---|---|---|---|---|---|---|---|---|
| 24.0-26.0 | 19.2-22.0 | .25 Max | 1.50 Max | 2.00 Max | .045 Max | .03 Max | .75 Max | .50 Max | Balance |
| Temperature, °F | Ultimate Tensile Strength, ksi | .2% Yield Strength, ksi | Elongation Percent |
|---|---|---|---|
| 70 | 80.0 | 35.0 | 52 |
| 1000 | 67.8 | 20.8 | 47 |
| 1200 | 54.1 | 20.7 | 43 |
| 1400 | 35.1 | 19.3 | 46 |
| 1600 | 19.1 | 12.2 | 48 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 310 | 1.4845 | S31000 | – | – | – | – | – |
Stainless Steel 310 offers exceptional heat resistance, oxidation resistance, and durability, making it ideal for high-temperature and industrial applications like furnaces, heat exchangers, and kilns.
Yes, Stainless Steel 310 performs well in mildly corrosive environments due to its high chromium and nickel content. However, it is not recommended for environments with severe corrosion.
Industries such as power generation, chemical processing, petrochemical, and construction use Stainless Steel 310 for heat-intensive applications like boilers, radiant tubes, and refractory anchors.
The Stainless Steel 347 Flat Bar is commonly utilized in scenarios that demand high strength along with heat and corrosion resistance. Typical applications include petrochemical equipment, heat exchangers, boilers, pressure vessels, and exhaust manifolds. It’s also frequently found in power generation plants, refineries, and chemical processing facilities that experience continuous thermal cycling. In the realms of fabrication and construction, these flat bars serve as structural supports, frames, and components where long-lasting durability and dependable performance are crucial.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
