Sabra Metals is a reputable manufacturer and supplier located in Amman, Jordan, focusing on top-notch stainless steel products tailored for a variety of industrial uses. One of our standout offerings is the Stainless Steel 347 Flat Bar, crafted with precision and rigorous quality checks to align with international standards. Renowned for its reliability and durability, this flat bar is built to excel in tough environments. Sabra Metals caters to the construction, petrochemical, power, and fabrication sectors by providing stainless steel solutions that guarantee strength, resistance to corrosion, and a long lifespan.
The Stainless Steel 347 Flat Bar is an austenitic stainless steel alloy that’s stabilized with niobium to reduce carbide precipitation when exposed to high temperatures. Its chemical makeup features chromium and nickel, which contribute to its impressive corrosion resistance, while niobium enhances its thermal stability. On the mechanical side, it boasts good tensile and yield strength, excellent toughness, and outstanding creep resistance. This material retains its mechanical properties even at elevated temperatures, offers good weldability, and stands up to intergranular corrosion in harsh operating conditions.
| Specifications | ASTM A 276 / SA 276 |
|---|---|
| Dimensions | ASTM, ASME |
| Range | 3.17 MM TO 350 MM DIA |
| Diameter | 25mm to 152m |
| Length | 1 to 6 Meters, Custom Cut Lengths |
| Finish | Bright, Polish & Black |
| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wiremesh, Billet, Ingot, Forging Etc., |
| Condition | Cold Drawn & Polished Cold Drawn, Centreless Ground & Polished |
| Cr | Ni | C | Si | Mn | P | S | Mo | Cu | Fe |
|---|---|---|---|---|---|---|---|---|---|
| 24.0-26.0 | 19.2-22.0 | .25 Max | 1.50 Max | 2.00 Max | .045 Max | .03 Max | .75 Max | .50 Max | Balance |
| Temperature, °F | Ultimate Tensile Strength, ksi | .2% Yield Strength, ksi | Elongation Percent |
|---|---|---|---|
| 70 | 80.0 | 35.0 | 52 |
| 1000 | 67.8 | 20.8 | 47 |
| 1200 | 54.1 | 20.7 | 43 |
| 1400 | 35.1 | 19.3 | 46 |
| 1600 | 19.1 | 12.2 | 48 |
|
Type |
SIZES (mm) |
SIZES (Inches) |
ISO Tolerance |
|---|---|---|---|
|
Cold Drawn and Polish |
3.00 – 75.00 |
1/8 – 3.00 |
h8-h9-h10-h11 |
|
Cold Drawn and Ground |
10.00 – 75.00 |
5/6 – 2.50 |
h8-h9-h10-h11 |
|
Peeled and Polished |
40.00 – 150.00 |
1.50 – 6.00 |
h11, h11-DIN 1013 |
|
Peeled and Ground |
20.00 – 50.00 |
3/4 – 2.00 |
h9-h10-h11 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 310 | 1.4841 / 1.4307 | S31000 | SUS 310 | 310S24 | 20Ch25N20S2 | – | X15CrNi25-20 |
| Diameter | Wght | Dia | Wght |
|---|---|---|---|
| (mm) | per metre (kg) | (in) | per metre (kg) |
| 3 | 0.06 | 1/8″ | 0.06 |
| 4 | 0.10 | 3/16″ | 0.14 |
| 5 | 0.16 | 1/4″ | 0.25 |
| 6 | 0.22 | 5/16″ | 0.39 |
| 7 | 0.30 | 3/8″ | 0.56 |
| 8 | 0.40 | 7/16″ | 0.77 |
| 10 | 0.62 | 1/2″ | 1.00 |
| 12 | 0.89 | 9/16″ | 1.22 |
| 14 | 1.22 | 5/8″ | 1.56 |
| 15 | 1.40 | 11/16″ | 1.89 |
| 16 | 1.59 | 3/4″ | 2.25 |
| 18 | 2.01 | 7/8″ | 3.07 |
| 20 | 2.48 | 1″ | 4.03 |
| 22 | 3.00 | ||
| 24 | 3.57 | ||
| 25 | 3.88 |

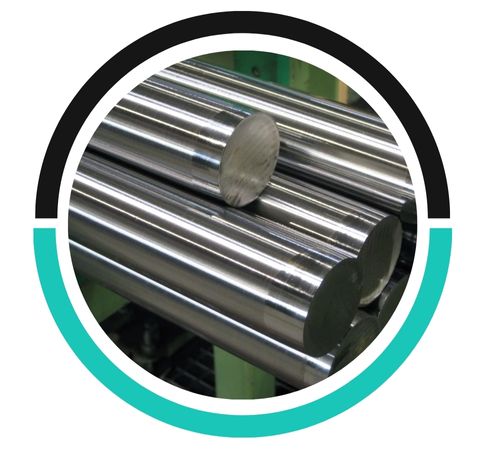

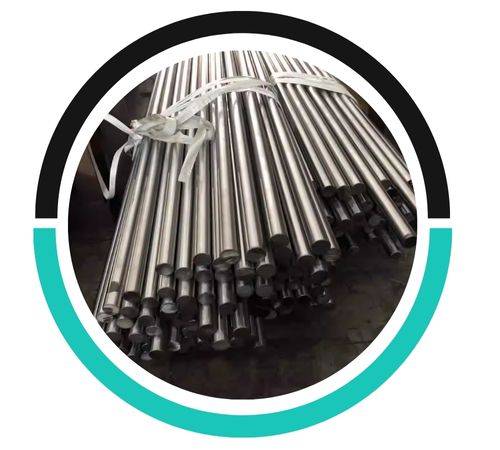

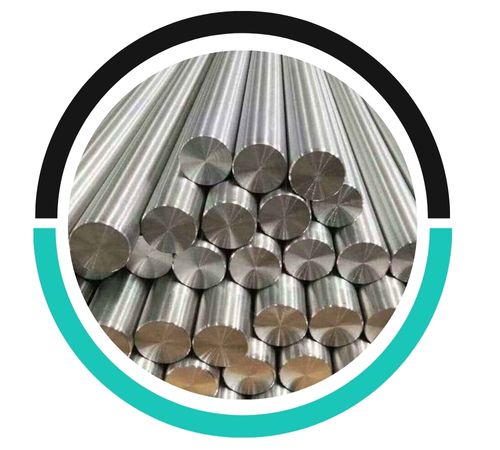

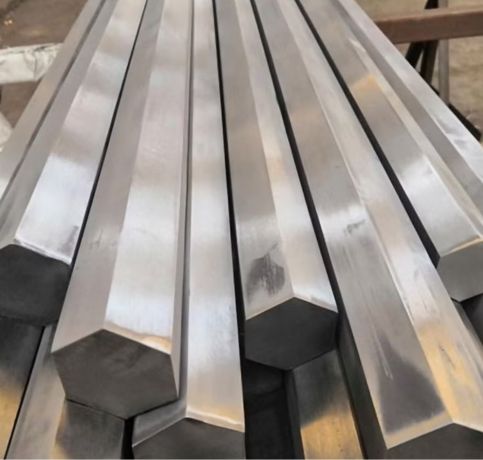

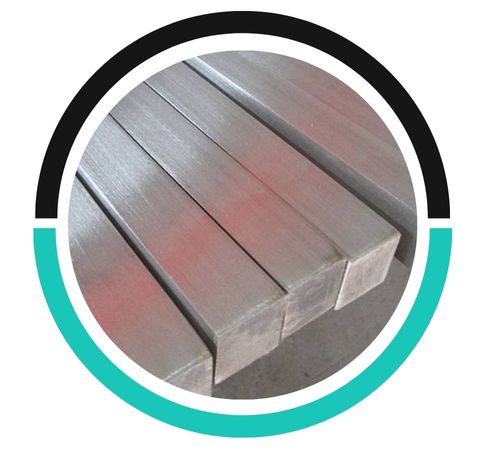

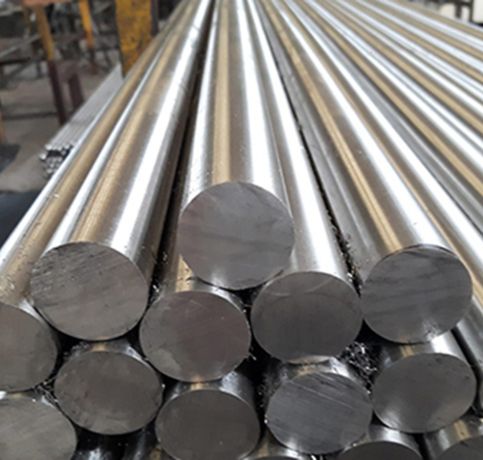

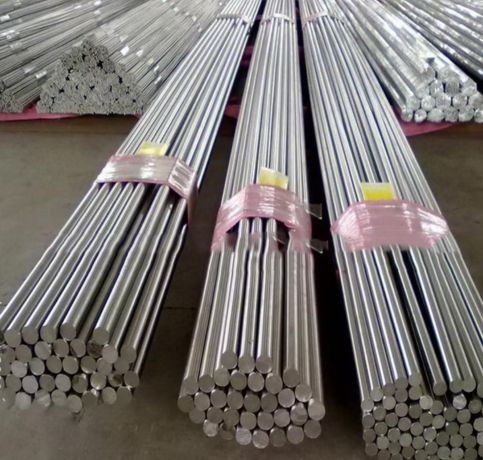

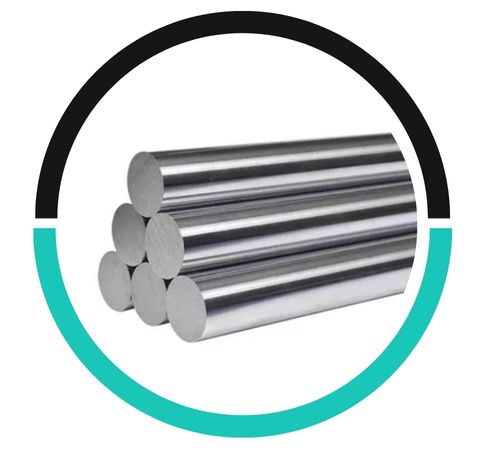

We supply a wide range of 310 Stainless Steel Bars and Rods, including round bars, square bars, hexagonal bars, flat bars, hollow bars, and rectangular bars. These products are available in various sizes and shapes to meet the diverse needs of different industries.
Sabra Metals is a leading manufacturer and supplier of premium-quality Stainless Steel 310 Bars and Rods, catering to industrial, commercial, and personal needs across the Jordan and worldwide.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@sabrametals.com
The Stainless Steel 347 Flat Bar is commonly utilized in scenarios that demand high strength along with heat and corrosion resistance. Typical applications include petrochemical equipment, heat exchangers, boilers, pressure vessels, and exhaust manifolds. It’s also frequently found in power generation plants, refineries, and chemical processing units that experience continuous thermal cycling. In the realms of fabrication and construction, these flat bars serve as structural supports, frames, and components where long-lasting durability and dependable performance are crucial.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Sabra Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Amman, Jordan
