Located in the heart of Amman, Jordan, Sabra Metals stands as a dedicated manufacturer and supplier, providing industry with high-quality stainless steel solutions. Our focus on Stainless Steel 316L bars and rods reflects a commitment to durability and performance, especially crucial for the demanding environments faced by regional industries. We understand that robust materials are the foundation of strong projects, and we take pride in supplying products that meet the exacting standards required for construction, manufacturing, and beyond, right here from our strategic location in the Middle East.
The strength of 316L stainless steel lies in its refined composition, which includes chromium, nickel, and a crucial addition of molybdenum that significantly boosts its resistance to corrosion. This low-carbon variant is particularly effective at resisting sensitization, which is the formation of harmful carbides during welding. This results in a material that not only offers excellent toughness and good tensile strength but also maintains its integrity in challenging conditions, making these bars and rods a reliably strong choice for critical applications.
| Specification | ASTM A276/ A479, ASME SA276/SA479 |
|---|---|
| Grade | Stainless Steel 316L (UNS S31603) |
| Flat bar size | 1/2” to 10” in thickness range of 2mm to 150mm |

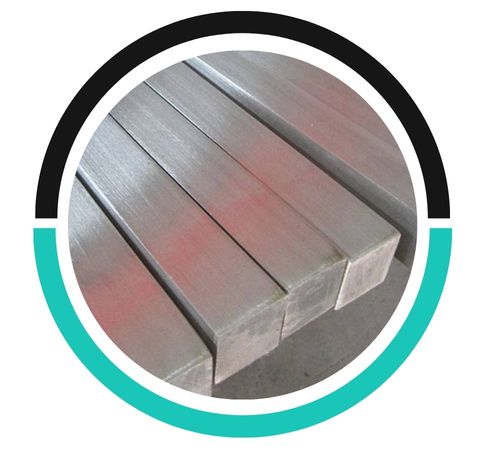

| Square bar size | 18mm – 47mm (11/16″ to 1-3/4″) |

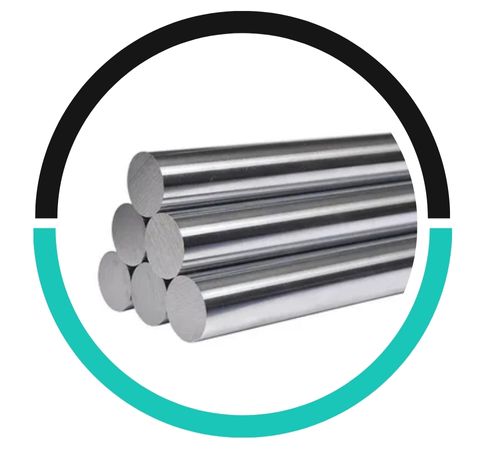

| Round bar size | Outside Diameter in the range of 4mm to 500mm |
| Hex Bar size | 18mm – 57mm (11/16″ to 2-3/4″) |
| Bright Bar | Outside Diameter in the range of 4mm to 100mm |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Billet Size | 1/2″ to 495mm Diameter |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Rectangular bar Size | 33 x 30mm to 295 x 1066mm |

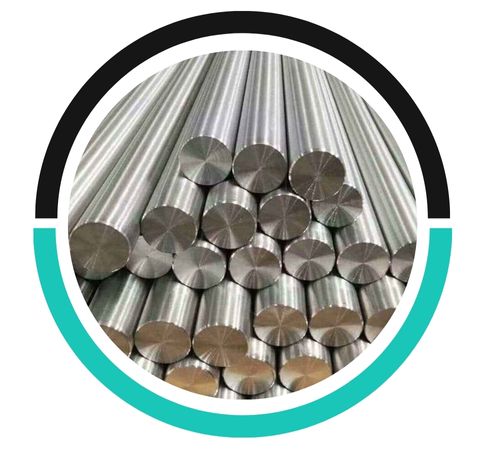

| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Cold Drawn, Bright, Sand Blasting Finished, Hot Rolled Pickled, Hairline, Polished |
| Condition | Hardened & tempered, annealed |

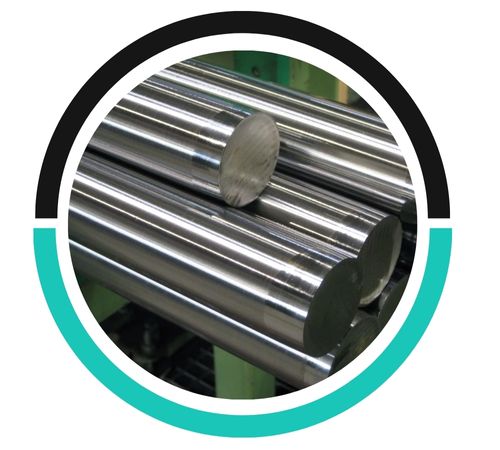

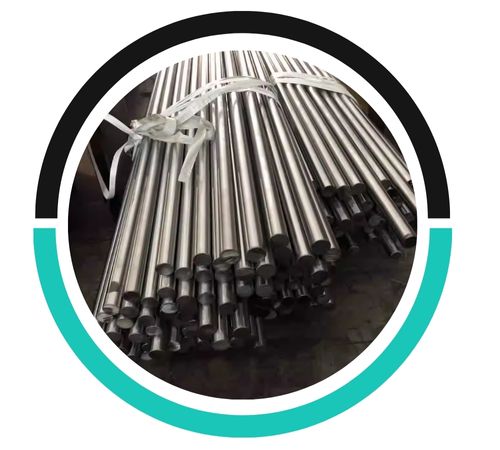

| Technique | 316L Stainless Steel Cold Drawn, Hot Rolled, Forged Round Bar, Rod, Cold Rolled |
| Processing | Bar cutting to 650mm |
| Section | 3.0 to 12.0mm thickness |
| Form | Precision Ground Bar, Flat Bar, Square, Round, Half Round Bar, Rod, Rectangle, Hex (A/F), T-Bar, Channel Bar,Blocks, Round Rod, Threaded, Profiles, Billet, Ingot, I/H Bar, Forging, Rings, Hollow, Triangle etc. |
| Our 316L Stainless Steel Round bar conforms to NACE MR0175/ISO 15156 | |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316L | 0.3 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 16 – 18 | 2 – 3 | 10 – 14 | 0.10 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1454 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐032 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Stainless Steel 316L contains molybdenum, which enhances resistance to chloride-induced pitting and corrosion, making it highly suitable for marine and coastal applications.
Yes, the low carbon content in 316L minimizes carbide precipitation during welding, ensuring excellent corrosion resistance even in heat-affected zones.
You’ll find Stainless Steel 316L bars and rods hard at work in some of the most challenging environments. They are essential in the construction of chemical processing plants, pharmaceutical equipment, and marine components where resistance to saltwater corrosion is paramount. Their suitability for welding makes them a favorite for fabricating pipes, valves, and pump shafts. Even in our daily lives, this grade of stainless steel is used in architectural facades, surgical instruments, and food processing equipment, proving its versatility and unmatched reliability across countless essential industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
