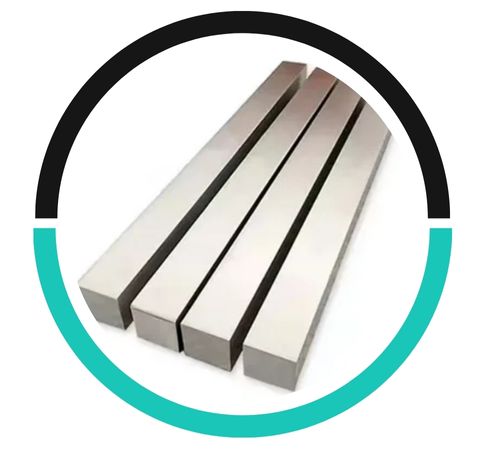

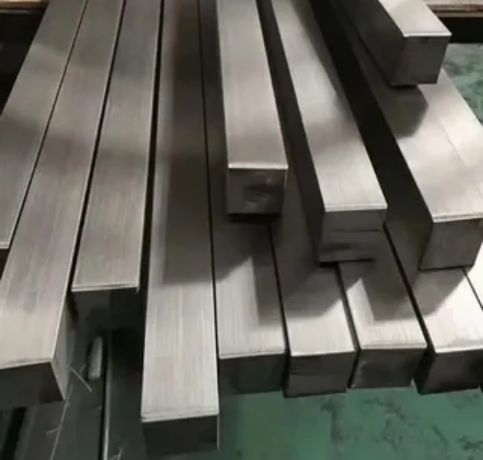

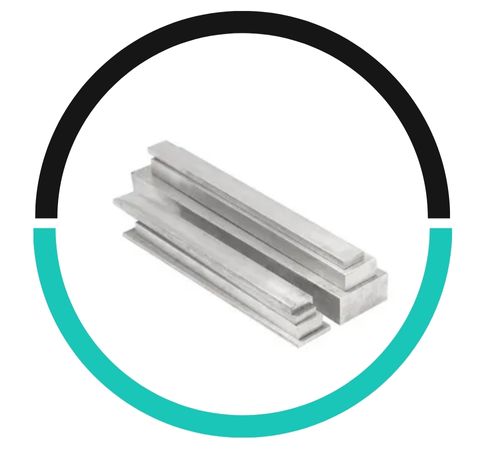

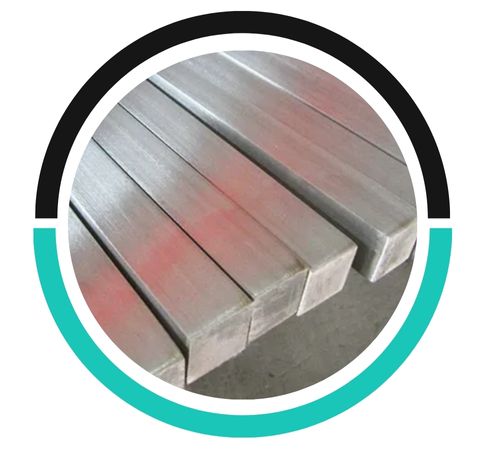

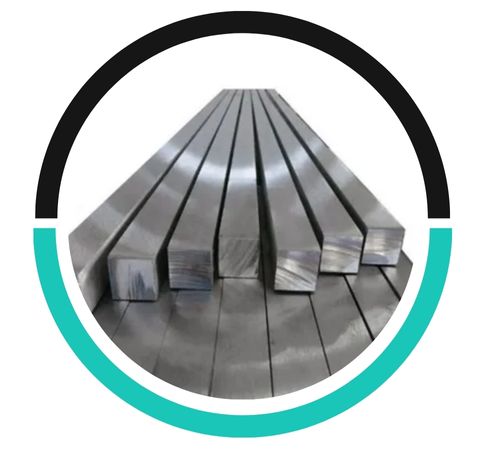

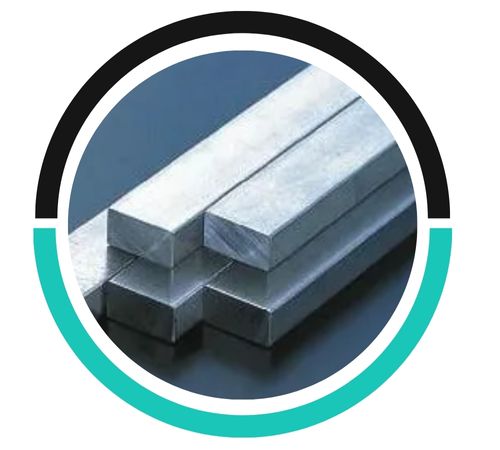

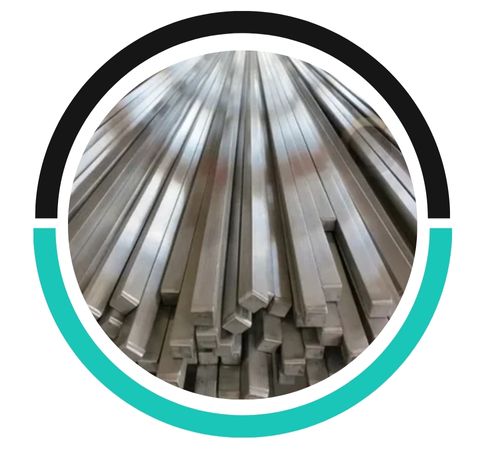

Sabra Metals, a reputable manufacturer and supplier located in Amman, Jordan, is dedicated to providing top-notch Stainless Steel 316L Square Bars and Rods to meet a variety of industrial needs. With a strong focus on precision engineering and adherence to international standards, Sabra Metals delivers products that boast exceptional corrosion resistance, durability, and reliability. Their 316L square bars and rods are the go-to choice for applications that demand outstanding performance in challenging environments. Thanks to their advanced manufacturing capabilities, rigorous quality control, and a commitment to customer satisfaction, Sabra Metals ensures that clients in sectors like construction, chemical processing, marine, and engineering receive high-quality stainless-steel solutions tailored to their specific requirements.
Stainless Steel 316L Square Bars and Rods are primarily made up of chromium, nickel, and molybdenum, featuring a lower carbon content that enhances their corrosion resistance. This alloy is known for its impressive mechanical properties, including high tensile strength, good yield strength, and remarkable toughness, even in low temperatures. The addition of molybdenum significantly boosts resistance to pitting and crevice corrosion, particularly in chloride-rich environments. Moreover, this material is easy to weld, form, and remains stable under high temperatures, making it perfect for applications that require long-lasting durability and structural integrity.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M
Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Size : Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 316l | 0.08 | 18.0 | 2.00 | 14.0 | 0.045 max | 3.00 max | 0.10 max |
| Element | Density, lb/in3 | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316l | 8.0 g/cm3 | 1400 °C (2550 °F) | 485 Min | 170 Min | 40% Min |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316l | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Yes, Stainless Steel 316L Square Bars are highly corrosion-resistant, especially to pitting and crevice corrosion in chloride environments. This makes them ideal for marine and chemical applications.
Stainless Steel 316L square bars are generally non-magnetic in their annealed state. However, they may exhibit slight magnetism when cold worked.
Yes, Stainless Steel 316L square bars are suitable for heat exchangers due to their excellent corrosion resistance, high-temperature stability, and good weldability. They are ideal for applications in corrosive and high-temperature environments.
These Stainless Steel 316L Square Bars and Rods are widely utilized across various industries due to their outstanding corrosion resistance and mechanical strength. They are particularly suited for marine settings, desalination plants, and chemical processing equipment where exposure to chlorides and harsh chemicals is prevalent. In the construction sector, they serve as vital components for structural frameworks and architectural designs. The food and pharmaceutical industries depend on 316L for hygienic machinery and processing equipment because of its cleanability. Additionally, these bars and rods play a crucial role in heat exchangers, oil and gas components, and medical devices.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Sabra Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Amman, Jordan
