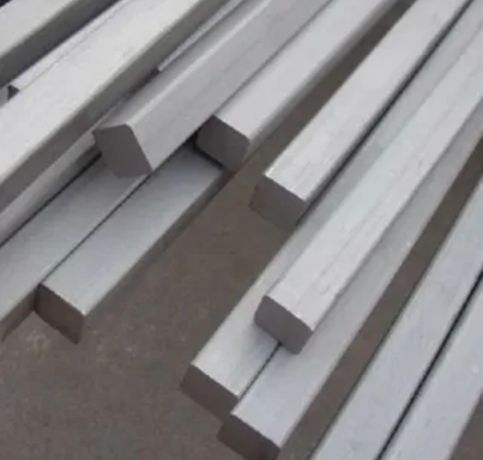

Located in the industrial heart of Amman, Sabra Metals has built a strong reputation for providing high-quality stainless steel solutions. We take pride in our role as a trusted manufacturer and supplier, offering precision-engineered Stainless Steel 317L Square Bars and Rods. This specific grade is a cornerstone for projects demanding superior corrosion resistance, especially in challenging environments. Our commitment is to deliver materials that combine exceptional performance with the reliability our clients across Jordan and the wider region have come to depend on for their most critical applications.
The strength of 317L lies in its sophisticated composition, which includes higher levels of chromium, nickel, and a significant addition of molybdenum. This specific alloy blend gives it outstanding resistance to pitting and crevice corrosion, particularly when faced with chlorides and acidic conditions. Mechanically, these square bars and rods offer excellent tensile strength and good ductility, allowing them to be machined and formed into durable components. This combination of innate toughness and formidable corrosion-fighting ability makes it a go-to material for engineers.
Stainless Steel 317L Square Bars Specification :
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M
Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Size : Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 317 | 0.03 max. | 18.0 – 20.0 | 2.00 max. | 11.0 – 15.0 | 0.045 max. | 0.03 max. | 0.75 max. |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi ” 75000, MPa ” 515 | Psi ” 30000, MPa ” 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 317 | 1.4438 | S31703 |
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Yes, Stainless Steel 317L square bars and rods can be recycled after use. They retain their properties and can be repurposed for new applications, making them highly sustainable.
To ensure the quality of Stainless Steel 317L square rods, source them from reputable suppliers and conduct material tests such as chemical composition and mechanical properties. Additionally, check for compliance with relevant industry standards and certifications.
Yes, Stainless Steel 317L square bars can be used for underground applications due to their excellent corrosion resistance, particularly in environments with high moisture or chloride exposure. Their durability ensures long-lasting performance in such conditions.
You’ll typically find Stainless Steel 317L square bars and rods hard at work in some of the most demanding industrial settings. They are essential in the construction of chemical processing equipment, pollution control scrubbers, and components for pharmaceutical and food processing plants where purity is paramount. These robust bars are also favoured for architectural uses in coastal areas, as well as in the fabrication of heat exchangers and vessels that handle aggressive media. Essentially, wherever corrosion is a major concern, 317L provides a trusted and long-lasting solution.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
