Sabra Metals, located in Amman, Jordan, stands out as a top manufacturer and supplier of premium Titanium Grade 8 bars. These bars are celebrated for their exceptional corrosion resistance, strength, and reliability, crafted with precision to meet the rigorous standards of various industries. With cutting-edge production techniques and stringent quality control measures, Sabra Metals ensures that each bar maintains consistent mechanical properties and material integrity. The company caters to a diverse range of sectors, including chemical processing, aerospace, marine, and medical, providing titanium solutions that can endure extreme conditions. Their commitment to quality and prompt delivery has established Sabra Metals as a trusted supplier of Titanium Grade 8 bars both locally and globally.
Titanium Grade 8 bars are made from a titanium alloy that includes about 2% iron and 0.5% oxygen, which enhances their strength while preserving excellent corrosion resistance. This grade boasts remarkable mechanical properties, featuring high tensile strength (around 900–1100 MPa) and good ductility, along with impressive fatigue and creep resistance. Titanium Grade 8 is particularly adept at resisting oxidizing acids, chloride solutions, and seawater, making it an ideal choice for challenging chemical and marine environments. Its unique blend of strength, corrosion resistance, and lightweight nature makes it perfect for critical engineering applications.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

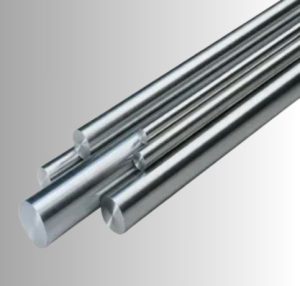

| Round bar size : | Diameter: 3-~800mm |

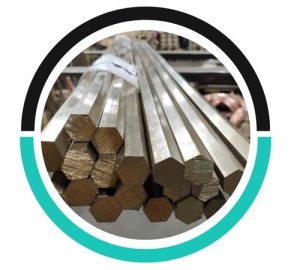

| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |
| Square bar size : | 4 to 100mm |
| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 8 | – | R54810 |
| Grade | O | N | C | H | Fe | Al | Mo | V |
| 8Al 1Mo 1V | 0.15 | 0.05 | 0.08 | 0.0125 | 0.3 | 7.5-8.5 | 0.75-1.25 | 0.75-1.25 |
| Grade | Tensile strength (MPa) | Yield strength (MPa) | Elongation in 4D (%) | Reduction of area (%) | Hardness (HV) |
| 8Al 1Mo 1V | 1020 | 930 | 10 | 40 | 350 |
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
|---|---|---|---|---|---|---|---|---|
| 3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3″ | 10.900 | 35.762 |
| 1/8″ | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4″ | 12.800 | 41.996 |
| 5/32″ | 0.029 | 0.095 | 7/8″ | 0.926 | 3.038 | 3-1/2″ | 14.850 | 48.772 |
| 4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4″ | 17.001 | 55.780 |
| 3/16″ | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4″ | 19.306 | 63.340 |
| 5mm | 0.047 | 0.154 | 1″ | 1.210 | 3.970 | 4-1/4″ | 21.908 | 72.249 |
| 7/32″ | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2″ | 24.4487 | 80.340 |
| 6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4″ | 27.366 | 90.249 |
| 1/4″ | 0.076 | 0.249 | 1-1/8″ | 1.534 | 5.033 | 5″ | 30.461 | 99.940 |
| 7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2″ | 36.690 | 121.000 |
| 5/16″ | 0.118 | 0.387 | 1-1/4″ | 1.924 | 6.349 | 6″ | 43.860 | 143.900 |
| 8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2″ | 51.093 | 167.630 |
| 9mm | 0.152 | 0.498 | 1-3/8″ | 2.303 | 7.550 | 7″ | 59.432 | 196.000 |
| 3/8″ | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2″ | 68.226 | 225.000 |
| 10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8″ | 77.586 | 254.55 |
| 11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10″ | 121.048 | 397.140 |
| 7/16″ | 0.232 | 0.761 | 1-1/2″ | 2.715 | 8.951 | |||
| 12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
| 1/2″ | 0.303 | 0.994 | 1-5/8″ | 3.200 | 10.449 | |||
| 13mm | 0.318 | 1.043 | 1-3/4″ | 3.712 | 12.179 | |||
| 14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
| 9/16″ | 0.383 | 1.256 | 1-7/8″ | 4.260 | 13.977 | |||
| 15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
| 5/8″ | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
| 16mm | 0.481 | 1.578 | 2″ | 4.848 | 15.906 | |||
| 17mm | 0.543 | 1.791 | 2-1/8″ | 5.475 | 17.963 | |||
| 11/16″ | 0.573 | 1.880 | 2-1/4″ | 6.135 | 20.128 | |||
| 18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
| 3/4″ | 0.682 | 2.237 | 2-3/8″ | 6.838 | 22.435 | |||
| 2-1/2″ | 7.576 | 24.856 | ||||||
| 2-5/8″ | 8.354 | 27.409 | ||||||
| 2-3/4″ | 9.169 | 30.083 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@sabrametals.com
Titanium Grade 8 Bars and Rods offer high strength, excellent corrosion resistance, and superior performance in high-temperature environments, making them ideal for aerospace and marine applications.
Titanium Grade 8 combines 90% titanium, 6% aluminum, and 4% vanadium, offering enhanced strength and heat resistance compared to other grades, making it suitable for demanding industrial applications.
These Titanium Grade 8 bars find extensive use in the chemical and petrochemical industries for heat exchangers, pressure vessels, and piping systems in highly corrosive settings. In aerospace, they are utilized in structural components that demand high strength-to-weight ratios. Marine applications include seawater cooling systems and offshore equipment, thanks to their excellent resistance to chlorides. Furthermore, this titanium grade is also employed in medical implants, desalination plants, and industrial machinery that face harsh chemical exposure. Its outstanding corrosion resistance truly sets it apart in various demanding applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Sabra Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Amman, Jordan
